Support: EON X-Ray Asset Tracker Manual and FAQs

EON X-Ray is a powerful and versatile GPS tracker designed to provide unparalleled tracking accuracy and comprehensive monitoring capabilities. Ideal for both personal and commercial use, the EON X-Ray offers real-time GPS tracking, detailed reporting, and instant alerts. Its advanced features include geofencing, speed monitoring, and tamper alerts, ensuring you stay informed and in control at all times. With its rugged and durable design, the EON X-Ray is built to withstand harsh environments, making it perfect for tracking vehicles, assets, and high-value items.


If you purchased your EON X-Ray device pre-activated, you should have already received an email containing your default login information before the device arrived.

If you did not purchase a pre-activated tracker, please visit activate.brickhousesecurity.com to complete your device activation.

There are replaceable AA Lithium batteries inside, so no charging is ever required. The device does not have a power button and is always on as long as it has charged batteries inside.


Download User Manual


Support: EON X-Ray

Tracking Schemes

The Eon is an asset tracker. It has a GPS receiver as well as WIFi capability. GPS is the most accurate method of positioning, but positioning indoors requires available Wifi. This device is perfect for when you are tracking something that will be indoors away from GPS signals.

Tracking Frequency Options/ Battery Life Estimates

Tracking FrequencyBattery Life

  • 2 Locates a day - 5 Years
  • 2 Locates a day + 1 hour of motion tracking* - 250 Days [Motion tracking is a 15-minute tracking interval]

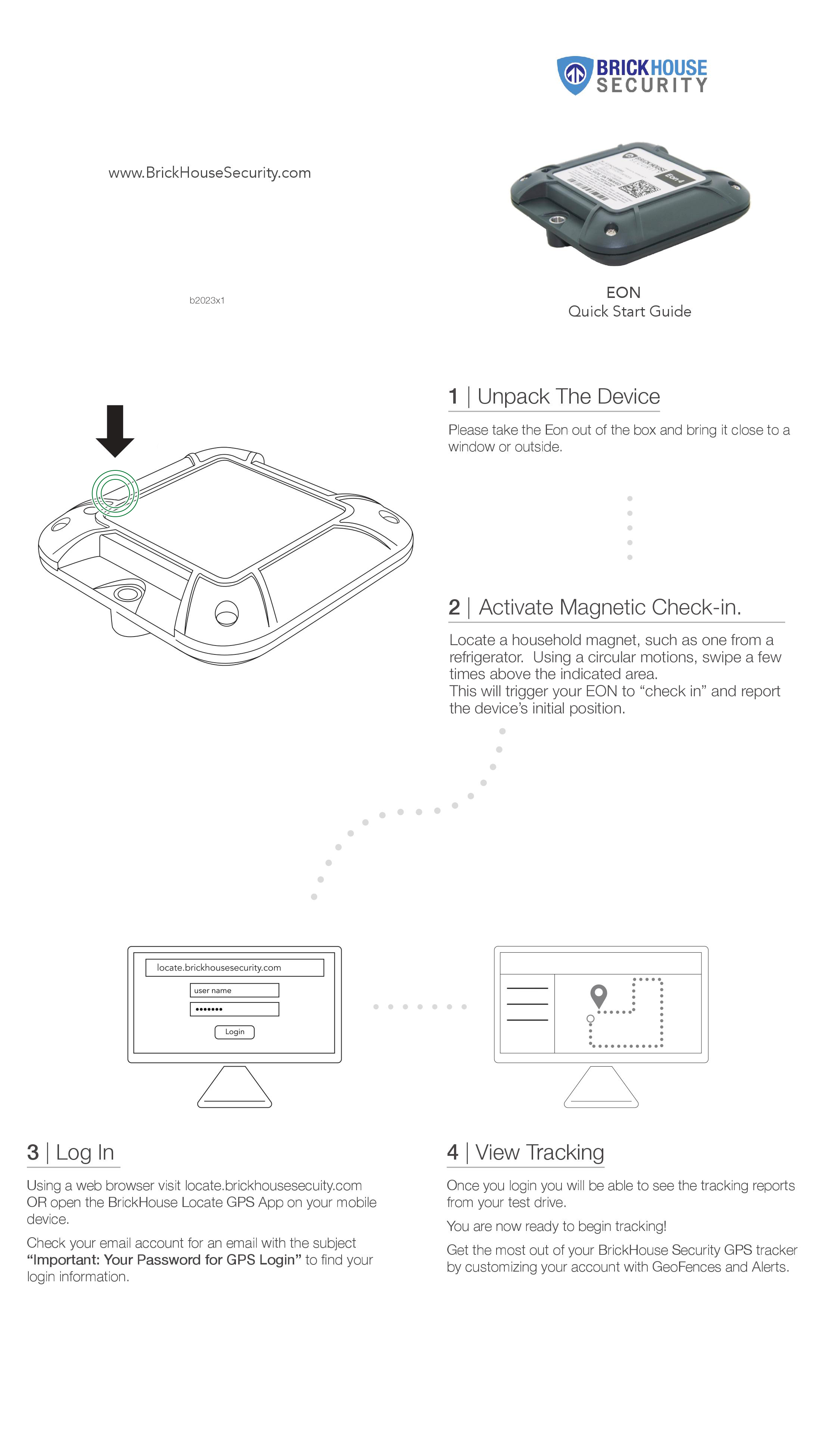

EON X-Ray Quick Start Guide

EON X-Ray


FAQs

Having trouble logging in? Can't find the email containing your username and password?

Please go to Locate.BrickHouseSecurity.com and click "Forgot your password?". Enter your email and username, which is your email address, then click Reset Password. A password reset link will be sent to you. Check your email and follow the instructions to reset your password and log in.

How do I track it on a mobile device?

You can track the device using the BrickHouse Locate GPS app available for Ios and Android devices. Download it on the App Store or get it on Google Play for free.

When I log in, I don’t see my device. Why?

Your device may not have established a GPS connection yet. If you already test-drove with the unit and it is still not tracking:

- Take the device outside.
- Place it where it has a clear view of the sky.
- Call us so we can send over the air commands to the device.
- Check your account to see if the device has updated.

Related Articles


Placing Your Tracker

The EON has more than one way to get your position information. For the most accurate readings, give consideration to your placement to ensure your device is optimally positioned for a clear GPS signal. When outdoors, the device will always give the most accurate location data if it has a clear view of the sky. It’s capable of transmitting and receiving through materials like glass, plastic, and cloth, but it’s not able to transmit through metals or concrete; keep this in mind when placing the device.

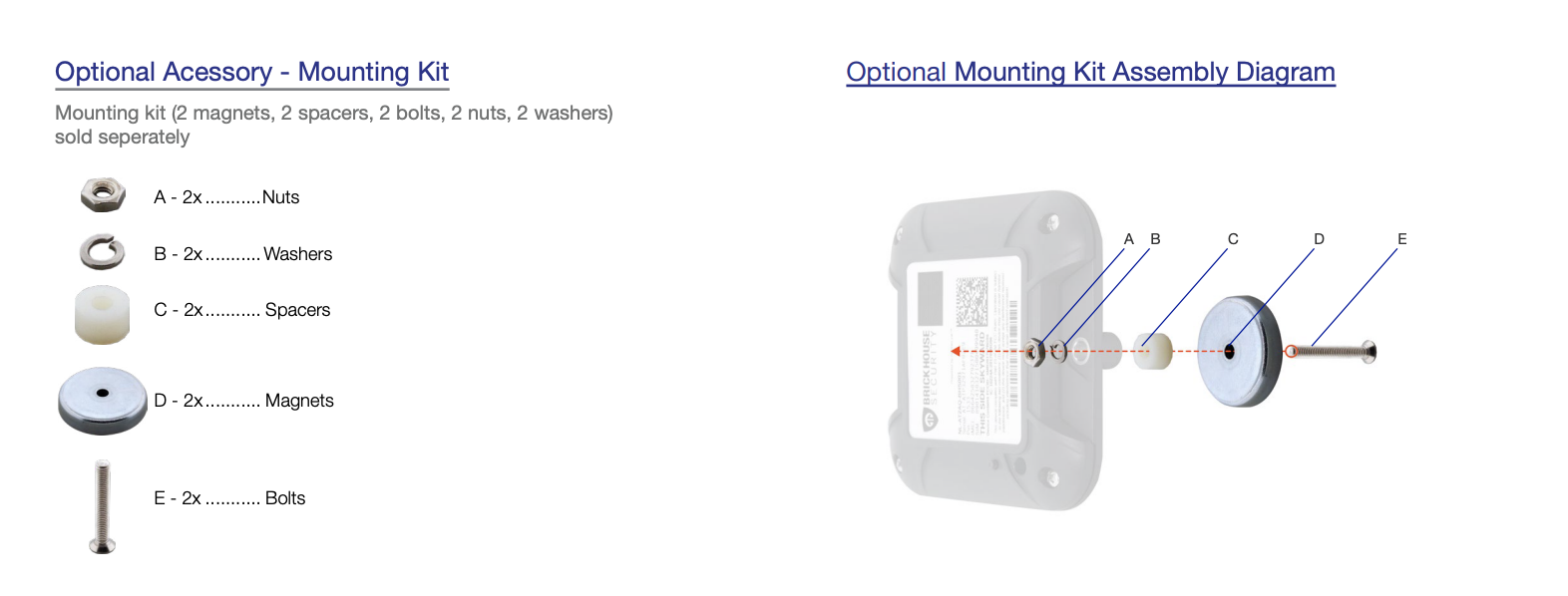

The device is weather-resistant which gives you more placement options. When placing the unit beneath an asset, you may need the mounting kit. Be sure that the BHS sticker is facing down, towards the ground, and that it is as close to the edge of the asset as possible. If you’re tracking an asset such as a large container, you will need to mount the device sticker side facing towards the sky (pointing upwards to receive a GPS signal).

Changing the Batteries

The unit has 4 “AA” size lithium batteries inside.

Remove Screws

Place the Asset Tracker front side up on a flat surface, so the screw holes are visible. Using a Phillips suitable size screwdriver, remove the four screws and set aside. Do not use a power tool for this.

Remove and Dispose of the Old Batteries

Carefully remove the old batteries one at a time and set aside.

Install the New Lithium Batteries

Carefully install the new lithium batteries, noting the orientation and polarity marked within each battery slot. Once the batteries have been installed, you should be able to observe the LED to know that the device has powered on.

Confirm Functionality

Once all four batteries have been properly installed, the Asset Tracker will check-in to the cloud. Check the BrickHouse tracking platform or site for a recent check-in to ensure that the batteries were installed correctly. Note: the platform will not show the update immediately; it can take 2-3 minutes before the new check-in shows up on the platform.

Asset Tracker LED Behavior Guide

Lastly, after replacing the batteries AND before replacing the cover, you should see the LED light located above the batteries That light will perform the following:

Step

LED Behavior

Description

1

Slow Blinking

Cellular module is booting up.

2

Faster Blinking

Device is searching for a cellular network after boot-up.

3

Solid On (Approx. 2 Seconds)

Successfully connected to the cloud.

4

LED Turns Off Permanently

Normal operation begins. LED remains off until the batteries are replaced.

Rapid Blinking (Approx. 2 Seconds)

Indicates an error has occurred.

Reinstall Cover

Once the batteries are correctly in place, reinstall the bottom cover. Make sure to align the two center mounting holes on the bottom cover with the mounting covers of the top-half. Flip the device over so it is right-side up and install the screws in an “X” pattern. This ensures a proper seal and even pressure on each corner. Additionally, please note that the screws should be torqued without being too tight. For reference: the torque specification is in-lbs (0.56 N-m).


BrickHouse Locate GPS Tracking Platform

For comprehensive guidance on using the tracking platform, please refer to the dedicated support articles below:

  • Support: Locate GPS Site Guide
    To view the complete and detailed guide for accessing and managing the tracking platform via the web interface, please visit the following link:
    Access the full Locate GPS Site Guide

  • Support: Locate GPS App Guide
    For a thorough walkthrough of the Locate GPS mobile application, including setup and usage instructions for on-the-go tracking, please refer to:
    Access the full Locate GPS App Guide


Video Tutorial: How Wi-Fi Positioning Works

For a clear explanation of how Wi-Fi positioning enhances GPS tracking accuracy—especially in indoor or low-satellite environments—please watch our detailed video tutorial.

Click the link below to view:

This video will walk you through the technology, how it functions, and when it is used by your tracking device.


Thank you for choosing BrickHouse Security for your GPS tracking solutions. We are committed to providing you with reliable service and support.

If you require further assistance or have any questions regarding our products or services, please don’t hesitate to contact us through any of the following methods:

Our support team is here to help ensure you get the most out of your GPS tracking experience.

Jan 3rd 2024
